Xiamen Jinguo Jinbei Cable presents the ZC-RV-105℃, a high-performance PVC insulated 105℃ high temperature flame-retardant wire engineered for demanding industrial environments. As a cornerstone of our ZC-RV-105℃ series, this wire combines superior thermal stability with excellent flexibility. Whether you are looking for reliable internal wiring for power switchgear or robust solutions for new energy systems, our PVC insulated 105℃ high temperature flame-retardant wire ensures safety and durability under continuous high-heat conditions.
Exceptional Flame Retardancy: Specifically designed to prevent the spread of fire, making it ideal for high-density electrical cabinets.
High Thermal Endurance: While standard wires fail, our PVC insulated 105℃ high temperature flame-retardant wire maintains its integrity at constant 105°C temperatures.
Superior Mechanical Strength:
Tensile Strength: ≥ 12.5 N/mm² (unaged).
Elongation at Break: ≥ 125% (unaged).
AC Voltage Test: 2000V-2500V/5min without breakdown.
Customization: Available in any color (Customized) to match your internal wiring color-coding requirements.
At Xiamen Jinguo Jinbei, quality is our lifeline. Every PVC insulated 105℃ high temperature flame-retardant wire undergoes five core inspections:
Tolerance Check: O.D. and conductor diameter strictly within range.
Concentricity: Ensuring the conductor is perfectly centered to prevent insulation breakdown.
Visual Printing: Clear, smudge-free identification for easy installation.
Resistance Verification: 20°C conductor resistance is the final arbiter of quality.
Packaging Integrity: Zero scratches or tangled lines upon delivery.
| TYPE | ZC-RV-105℃ | COLOR | CUSTOMIZED | ||||

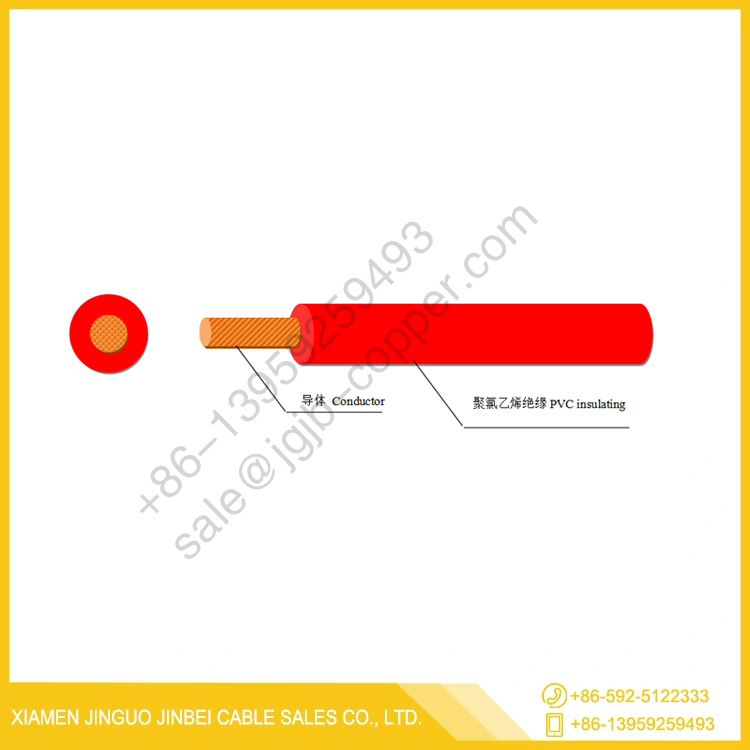

| DRAWING： Test Requirements ：1、 Cable O.D.,conductor wire O.D. within tolerance range.2、 Concentricity3、 Printing words correct and clearly4、 20℃ Conductor resistance within tolerance range5、 Package is trim, no scratch | |||||||
| Conductor | Insulation | ||||||
| Section area mm2 | Wire O.D. | resistance ≤Ω/km | thickness mm | O.D. mm | |||
| ±0.004 mm | copper | Tin-plated copper | Average | Minimum | Standard | process control | |
| 0.5 | ≤ 0.21 | 39.0 | 40.1 | 0.6 | 0.44 | 2.5 | 2.1-2.2 |
| 0.75 | ≤ 0.21 | 26.0 | 26.7 | 0.6 | 0.44 | 2.7 | 2.3-2.4 |
| 1 | ≤ 0.21 | 19.5 | 20.0 | 0.6 | 0.44 | 2.8 | 2.5-2.6 |
| 1.5 | ≤ 0.26 | 13.3 | 13.7 | 0.7 | 0.53 | 3.4 | 3.0-3.1 |
| 2.5 | ≤ 0.26 | 7.98 | 8.21 | 0.8 | 0.62 | 4.1 | 3.6-3.7 |
| 4 | ≤ 0.31 | 4.95 | 5.09 | 0.8 | 0.62 | 4.8 | 4.2-4.3 |
| 6 | ≤ 0.31 | 3.30 | 3.39 | 0.8 | 0.62 | 5.3 | 4.8-5.0 |
| 10 | ≤ 0.41 | 1.91 | 1.95 | 1.0 | 0.80 | 6.8 | 6.4-6.6 |
| 16 | ≤ 0.41 | 1.21 | 1.24 | 1.0 | 0.80 | 8.1 | 7.6-7.8 |
| 25 | ≤ 0.41 | 0.780 | 0.795 | 1.2 | 0.98 | 10.2 | 9.2-9.5 |
| 35 | ≤ 0.41 | 0.554 | 0.565 | 1.2 | 0.98 | 11.7 | 10.3-10.6 |
| 50 | ≤ 0.41 | 0.386 | 0.393 | 1.4 | 1.16 | 13.9 | 12.3-12.6 |
| Type | ZC-RV-105℃ | Color | CUSTOMIZED | |
| Rated Tep. | 105℃ | |||
| Rated Vol. | 0.5-1 mm2 300/500V | 1.5-50mm2 450/750V | ||
| spark voltage | 0.5-16 mm2 6kV | 25-50 mm2 10kV | ||
| AC voltage withstand test of complete cable | 2000V/5min No breakdown | 2500V/5min No breakdown | ||
| tensile strength | Withouter ageing ≥ 12.5N/mm2 | |||
| elongation at break | Withouter ageing ≥ 125 % | |||
Q: Can the ZC-RV-105℃ wire be used in marine environments?
A: Yes, we provide specialized wires for ship classification, and our 105°C rated insulation is well-suited for the demanding heat requirements of maritime engine rooms.
Q: Do you offer tinned copper conductors?
A: Absolutely. We offer both Bare Copper and Tin-plated Copper options for our ZC-RV-105℃ series to enhance corrosion resistance.
Q: What is the lead time for customized colors?
A: We support fully customized colors. Please contact our sales team with your specific RAL or Pantone requirements for a production schedule.
