Xiamen Jinguo Jinbei Cable Sales Co., Ltd. is proud to present our high-performance CE certified H07V PVC wire series, including the H07V-K and H05V-K models. Designed for versatility and reliability, this CE certified H07V PVC wire is the ideal solution for internal wiring in switchgear, power cabinets, and new energy storage units. By combining European standard compliance with our precision manufacturing, we ensure that every meter of our.
Our PVC Insulated 105℃ High Temperature Flame-Retardant CE certified H07V PVC wire offers enhanced protection against high temperatures and flames, meeting the rigorous demands of industrial applications. The ZC-RV-105℃ wire features durable PVC insulation, making it suitable for environments where high-performance and safety are paramount.
As a key supplier to global wind power companies, switchgear manufacturers, and China State Grid, we ensure that our cables meet the highest industry standards, including UL and AS5000 certifications.
This wire's flame-retardant PVC insulation prevents the spread of fire, offering improved safety and minimizing potential damage in the event of electrical failure.
With a rated temperature of 105℃, this wire is designed to withstand high-temperature environments, making it ideal for power systems and equipment operating under heat stress.
The ZC-RV-105℃ wire features a low-resistance conductor that ensures efficient current flow and a long service life. It is also designed for high voltage endurance, offering spark voltage resistance up to 10kV for larger sizes.
Our production line utilizes advanced process control to maintain strict tolerances for both the H05V-K and H07V-K series.
Designed for power installations, our CE certified H07V PVC wire (H07V-K) offers robust insulation and high spark voltage resistance.
| TYPE | H07V-K | COLOR | CUSTOMIZED | ||||
|

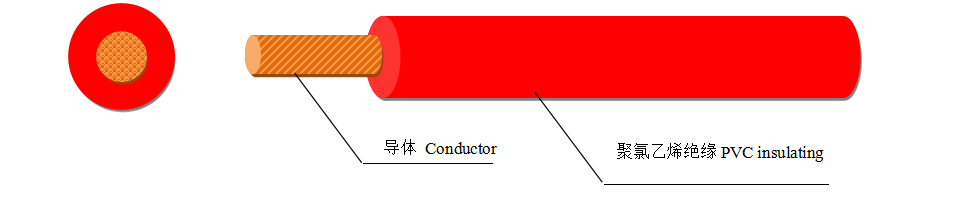

DRAWING： Test Requirements ： 1、 Cable O.D.,conductor wire O.D. within tolerance range. 2、 Concentricity. 3、 Printing words correct and clearly. 4、 20℃ Conductor resistance within tolerance range. 5、 Package is trim, no scratch. |
|||||||
| Conductor | Insulation | ||||||
| Section area mm2 | Wire O.D. | resistance ≤Ω/km | thickness mm | O.D. mm | |||
| ±0.004 mm | copper | Tin-plated copper | Average | Minimum | Standard | process control | |
| 1.5 | ≤ 0.26 | 13.3 | 13.7 | 0.7 | 0.53 | 2.8-3.4 | 3.0-3.1 |
| 2.5 | ≤ 0.26 | 7.98 | 8.21 | 0.8 | 0.62 | 3.4-4.1 | 3.6-3.7 |
| 4 | ≤ 0.31 | 4.95 | 5.09 | 0.8 | 0.62 | 3.9-4.8 | 4.2-4.3 |
| 6 | ≤ 0.31 | 3.30 | 3.39 | 0.8 | 0.62 | 4.4-5.3 | 4.8-5.0 |
| 10 | ≤ 0.41 | 1.91 | 1.95 | 1.0 | 0.80 | 5.7-6.8 | 6.4-6.6 |
| 16 | ≤ 0.41 | 1.21 | 1.24 | 1.0 | 0.80 | 6.7-8.1 | 7.6-7.8 |
| 25 | ≤ 0.41 | 0.780 | 0.795 | 1.2 | 0.98 | 8.4-10.2 | 9.2-9.5 |
| 35 | ≤ 0.41 | 0.554 | 0.565 | 1.2 | 0.98 | 9.7-11.7 | 10.3-10.6 |
| 50 | ≤ 0.41 | 0.386 | 0.393 | 1.4 | 1.16 | 11.5-13.9 | 12.3-12.6 |
| Type | H07V-K | Color | CUSTOMIZED | ||
| Insulation | PVC | ||||
| Rated Tep. | 70℃ | ||||
| Rated Vol. | 450/750V | ||||
| spark voltage | 1.5-16mm2:6kV | 25-50mm2:10kV | |||
| AC voltage withstand test of complete cable | 2500V/5min No breakdown | ||||
| tensile strength | Withouter ageing ≥ 12.5N/mm2 | ||||
| elongation at break | Withouter ageing ≥ 125 % | ||||
| Type | H05V-K | Color | CUSTOMIZED | ||
| Rated Tep. | 70℃ | ||||
| Rated Vol. | 300/500V | ||||
| spark voltage | 6kV | ||||
| AC voltage withstand test of complete cable | 2000V/5min No breakdown | ||||
| tensile strength | Withouter ageing ≥ 12.5N/mm2 | ||||
| elongation at break | Withouter ageing ≥ 125 % | ||||
| spark voltage | 6kV |
| AC voltage withstand test of complete cable | 2000V/5min No breakdown |
| tensile strength | Withouter ageing ≥ 12.5N/mm2 |
| elongation at break | Withouter ageing ≥ 125 % |
| TYPE | H05V-K | COLOR | CUSTOMIZED | ||||
|

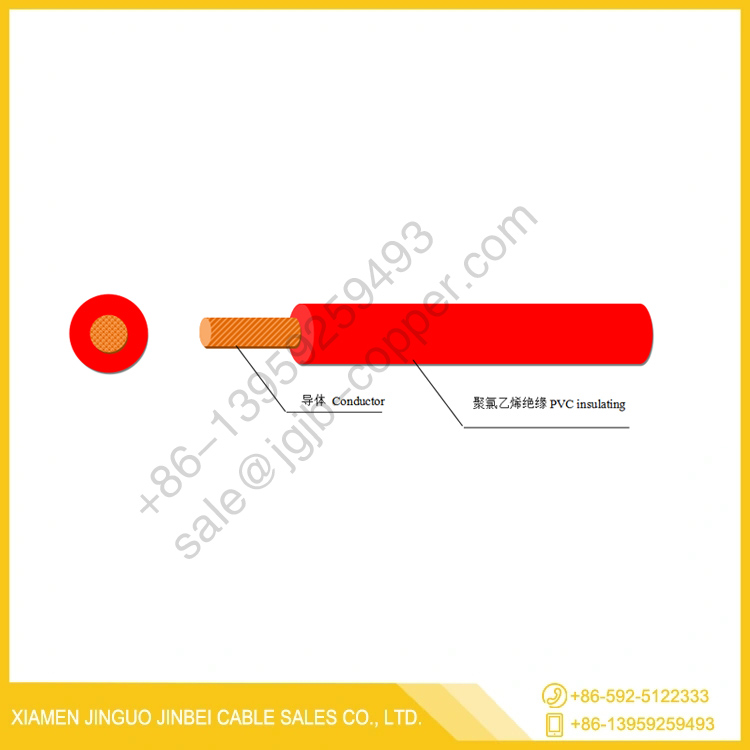

DRAWING： Test Requirements ： 1、Cable O.D.,conductor wire O.D. within tolerance range. 2、Concentricity. 3、Printing words correct and clearly. 4、20℃ Conductor resistance within tolerance range. 5、Package is trim, no scratch. |
|||||||
| Conductor | Insulation | ||||||
| Section area mm2 | Wire O.D. | resistance ≤Ω/km | thickness mm | O.D. mm | |||
| ±0.004 mm | copper | Tin-plated copper | Average | Minimum | Standard | process control | |
| 0.5 | ≤ 0.21 | 39.0 | 40.1 | 0.6 | 0.44 | 2.1-2.5 | 2.1-2.2 |
| 0.75 | ≤ 0.21 | 26.0 | 26.7 | 0.6 | 0.44 | 2.2-2.7 | 2.3-2.4 |
| 1 | ≤ 0.21 | 19.5 | 20.0 | 0.6 | 0.44 | 2.4-2.8 | 2.5-2.6 |
To maintain our "Quality First" philosophy, our CE certified H07V PVC wire must pass five critical checkpoints before leaving our facility:
Dimensional Precision: Cable O.D. and conductor O.D. are kept strictly within tolerance ranges.
Perfect Concentricity: Ensures the insulation thickness is uniform, preventing electrical leaks.
Clear Identification: Printing is correct, legible, and free of defects like oil smudges or "pulling."
Resistance-Based Validation: Conductor quality is determined by actual 20℃ resistance tests, not just visual diameter.
Premium Packaging: We ensure the final package is trim, with no scratches or tangled lines.
