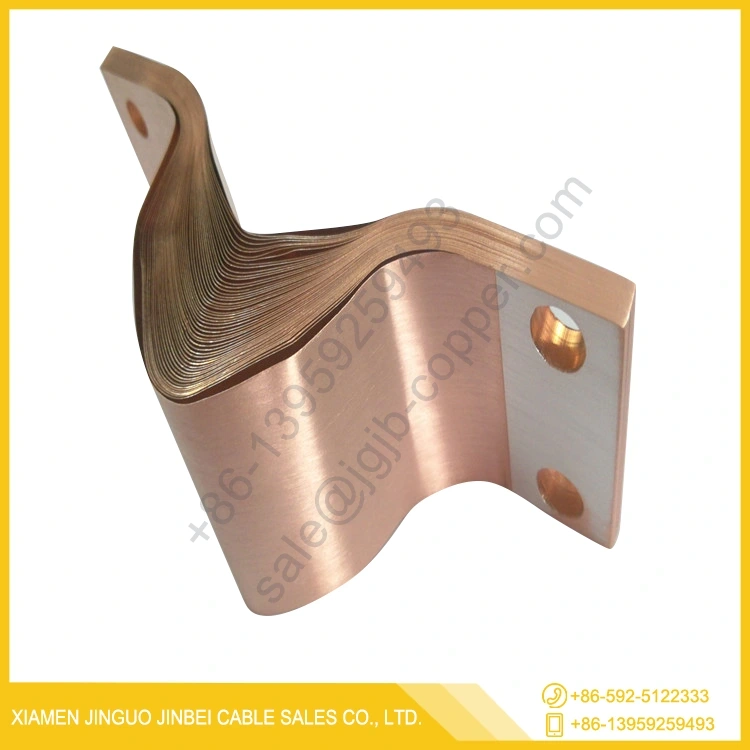

Copper Laminated Flexible Connectors made out of braids or laminates are used in a variety of electrical equipment. Copper Flexible belts could be customized.
Copper Laminated Flexible Connectors made out of braids or laminates are used in a variety of electrical equipment. Copper Flexible belts could be customized.
Copper Laminated Flexible Connectors could use equal and unqual length blanking technology, the faying surface of the Flexible Conductor using molecular diffusion welding technolgy
|
Material |
Cu, Al |
|
Each Slice Thickness(mm) |
0.03, 0.035, 0.04, 0.05, 0.1, 0.2, 0.3, 0.5, 1 |
|
Width(mm） |
《300 |
|
Thickness(mm) |
《30 |
|
Welding Method |
Diffusion welding, argon arc welding |
|
Surface Treatment |
|
|
Foil plate |
|
|
Plating |
Silver, Tin, Nickel |
Heat shrink tube：Temperature resistance:-40℃～125℃
Flame retardant: UL224 VW-1
Voltage resistance: 600V, 1KV, 10KV, 20KV, 35KV
Heat shrinkage ratio: 2:1/3:1
Halogen-free, environmental protection and low smoke, conform to ROHS & GB/T30512 requirement
