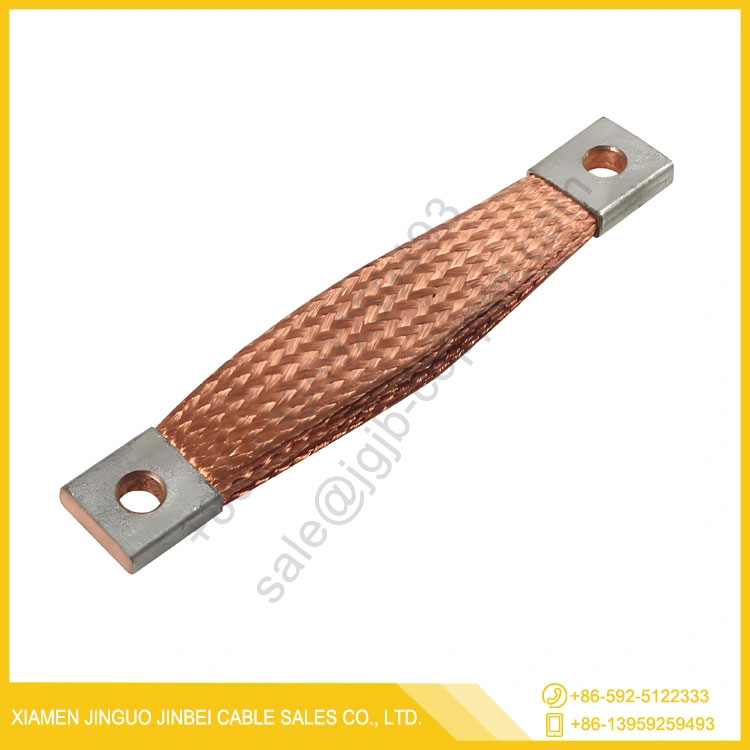

Braided copper, also known as copper braid or copper wire braid, is a flexible electrical conductor composed of multiple strands of fine copper wires woven together into a tubular or flat form. It is widely recognized for its exceptional conductivity, flexibility, and durability, making it indispensable in industries ranging from electronics and power transmission to automotive and aerospace systems.
Unlike solid copper conductors, braided copper provides superior flexibility without compromising electrical efficiency. This feature makes it ideal for applications that require movement, vibration resistance, and efficient current flow in tight or dynamic spaces.
Core Product Overview
Braided copper is typically classified into tinned, bare, and silver-plated types, each suited for specific operational environments:
Bare Copper Braid: Offers maximum conductivity for low-corrosion environments.
Tinned Copper Braid: Enhanced oxidation resistance, suitable for humid or marine applications.
Silver-Plated Copper Braid: Used in high-frequency or high-temperature conditions for premium performance.
Key Technical Specifications of Braided Copper
| Parameter | Specification Range | Description |
|---|---|---|
| Material | High-purity electrolytic copper (≥99.95%) | Ensures low resistance and stable performance |
| Strand Diameter | 0.05 mm – 0.30 mm | Determines braid flexibility and current capacity |
| Cross-Sectional Area | 1 mm² – 500 mm² | Defines total current-carrying capacity |
| Surface Treatment | Bare / Tinned / Silver-plated | Offers corrosion and oxidation protection |
| Operating Temperature | -55°C to +200°C | Suitable for harsh or variable environments |
| Electrical Conductivity | ≥ 58 MS/m | Comparable to standard copper wire performance |
| Tensile Strength | 200 – 400 N/mm² | Provides mechanical durability under load |
The demand for braided copper has surged due to the global movement toward electrification, renewable energy systems, and miniaturized devices that require flexible power pathways. As industries modernize, the reliability of conductive materials like braided copper directly influences energy efficiency, performance stability, and safety compliance.
The value of braided copper lies not only in its conductivity but also in its structural adaptability. While solid copper is efficient in static environments, braided copper delivers unmatched advantages where flexibility, vibration resistance, and longevity are crucial.
Key Advantages of Braided Copper:
Exceptional Flexibility:
The woven structure enables smooth bending and twisting without cracking or fracturing, making it ideal for dynamic installations like robotic arms, moving machinery, and grounding systems.
Enhanced Vibration Absorption:
Braided copper absorbs mechanical stress and vibration, preventing wire fatigue and prolonging the lifespan of electrical connections in high-motion environments.
Superior Heat Dissipation:
The braided structure promotes efficient heat transfer, reducing the risk of overheating and ensuring consistent conductivity over long operational periods.
Corrosion Resistance and Long-Term Reliability:
When tinned or silver-plated, braided copper resists oxidation, extending service life even in moisture-prone or corrosive conditions.
High Current Carrying Capacity:
Multiple strands increase surface area, lowering skin effect losses at high frequencies — crucial for high-speed data systems and power electronics.
Customizable Design:
Available in various diameters, weave densities, and coatings, braided copper can be engineered for grounding straps, shielding, bonding, and energy distribution applications.
Applications Across Industries:
Automotive: Battery grounding straps, electric vehicle power distribution, EMI shielding.
Renewable Energy: Solar inverter connections, grounding of photovoltaic modules.
Aerospace & Defense: Lightweight and flexible power transmission under extreme conditions.
Industrial Equipment: Connection for motors, transformers, and flexible power busbars.
Telecommunications: RF shielding and grounding for sensitive electronic components.
In summary, braided copper’s structural and electrical advantages make it an essential component in advanced electrical systems where both performance and reliability are non-negotiable.
The manufacturing process of braided copper combines precision engineering with metallurgical expertise. Each strand is drawn from high-conductivity copper wire, then braided using automated weaving machinery to ensure uniform tension and symmetry. Surface treatments such as tinning or silver plating are added through electroplating or hot-dip processes to enhance corrosion resistance and mechanical strength.
Manufacturing Steps:
Copper Wire Drawing: Refining raw copper into uniform thin strands.
Annealing: Softening the wire to improve flexibility and reduce brittleness.
Braiding: Interlacing multiple strands to form tubular or flat braids.
Plating or Coating: Applying tin, nickel, or silver to prevent oxidation.
Cutting and Termination: Customizing lengths, connectors, or terminals based on customer requirements.
Emerging Trends in Braided Copper Development:
Eco-Friendly Manufacturing:
Growing adoption of lead-free tin plating and recyclable copper materials supports global sustainability goals.
Integration with Smart Systems:
As IoT and EV technologies advance, braided copper is being developed with hybrid insulation layers and sensors for monitoring current, temperature, and wear.
Miniaturization and Lightweight Design:
In electronics and aerospace industries, thinner yet more efficient braided copper variants are in high demand to optimize space and reduce weight.
High-Frequency Compatibility:
New designs address skin effect reduction for better performance in 5G, EV, and high-speed communication systems.
Advanced Coatings:
Innovations like nano-silver plating and polymer hybrid coatings are improving conductivity and resistance against chemical exposure.
These technological trends position braided copper as a future-ready solution that aligns with the world’s shift toward electrification, renewable energy, and intelligent manufacturing.
Q1: What factors determine the performance of braided copper in electrical systems?
A1: The performance of braided copper depends on its strand count, weave density, cross-sectional area, and surface treatment. Higher strand counts increase flexibility, while larger cross-sectional areas enhance current capacity. The choice between bare, tinned, or silver-plated braid depends on environmental conditions — tinned for corrosion resistance, silver-plated for high-temperature or high-frequency applications, and bare for general use.
Q2: Can braided copper be used in both grounding and power transmission?
A2: Yes. Braided copper is highly versatile. Its flexibility and conductivity make it ideal for grounding straps in electrical panels, battery terminals, and transformers. For power transmission, flat or tubular braided copper conductors are used to deliver stable current across moving joints or high-vibration environments, ensuring both safety and efficiency.
Q3: How does braided copper contribute to energy efficiency?
A3: Braided copper minimizes electrical resistance and heat buildup, allowing energy to flow more efficiently through systems. Its ability to maintain stable current under mechanical stress reduces power loss and system downtime, contributing to long-term operational cost savings.
Q4: Is there a difference between copper braid and copper foil shielding?
A4: Yes. While both provide electromagnetic shielding, copper braid offers superior flexibility and mechanical strength, suitable for dynamic or outdoor applications. Copper foil is better for static shielding in confined or rigid enclosures.
As industries evolve toward electrification and automation, braided copper remains a cornerstone of safe and efficient energy transfer. The growing emphasis on renewable energy, electric mobility, and smart grid systems continues to elevate the demand for high-performance conductive materials that combine flexibility, reliability, and longevity.
In the coming years, expect to see braided copper integrated into advanced systems where data transmission, thermal management, and mechanical adaptability intersect. Manufacturers are also focusing on eco-efficient production, reducing environmental impact without sacrificing performance.
Companies like Jinguo Jinbei are at the forefront of this evolution — designing braided copper products that meet global electrical standards while offering tailored solutions for industrial, automotive, and power systems. Their commitment to precision, quality, and innovation ensures that every braided copper conductor delivers consistent performance in even the most demanding applications.
For more information, technical support, or custom braided copper solutions, contact us to discuss your specific requirements and discover how Jinguo Jinbei’s advanced copper products can empower your next-generation electrical systems.
