When it comes to electrical conductivity, durability, and corrosion resistance, choosing the right material is critical. One of the most trusted solutions across industries is the Tinned Copper Braid. This versatile product combines the superior conductivity of copper with the enhanced protection of tin, making it ideal for grounding, shielding, and flexible connections. Whether used in power transmission, automotive, telecommunications, or marine environments, Tinned Copper Braid ensures consistent performance even in harsh conditions.
As a supplier with years of industry expertise, Xiamen Jinguo Jinbei Cable Sales Co., Ltd. provides high-quality Tinned Copper Braid designed to meet both international standards and the diverse needs of global customers.

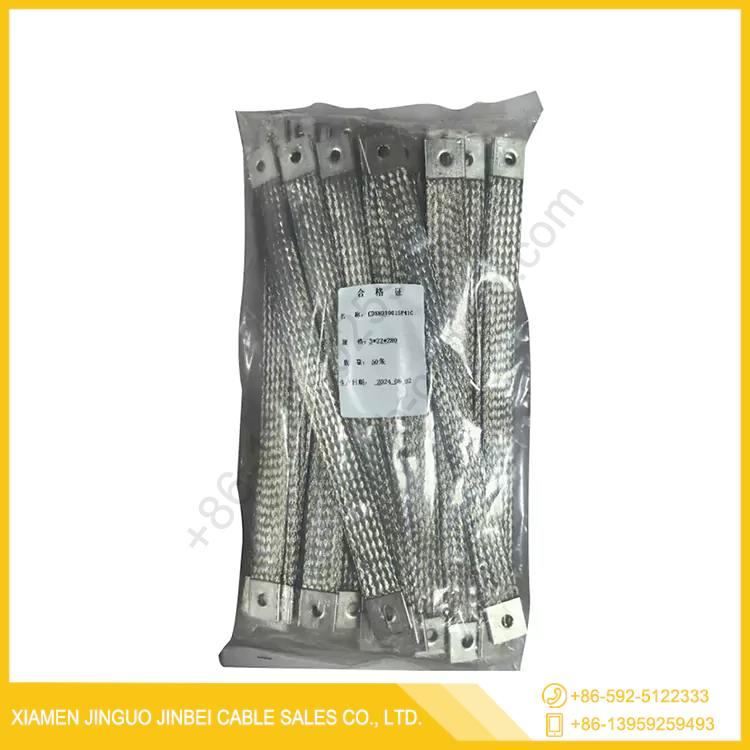

Tinned Copper Braid is a woven mesh of copper wires coated with a thin layer of tin. The tin plating prevents oxidation, significantly increasing the material's lifespan, especially in humid or high-salt environments. This protective feature makes it particularly valuable in marine, outdoor, and industrial settings where untreated copper might corrode quickly.
The braided structure allows for high flexibility without compromising conductivity. It is often used for shielding cables from electromagnetic interference (EMI), grounding electrical systems, and ensuring reliable current flow between moving parts.
High Conductivity: Maintains excellent electrical performance due to copper's low resistance.
Corrosion Resistance: Tin coating protects copper wires from moisture, salt, and oxidation.
Mechanical Flexibility: Woven design allows bending and stretching without breaking.
Thermal Stability: Performs well under wide temperature ranges.
Customizable Options: Available in multiple sizes, cross-sectional areas, and weaving densities.
Below is a sample of standard product specifications offered by Xiamen Jinguo Jinbei Cable Sales Co., Ltd.:
| Parameter | Specification Example | Notes |
|---|---|---|
| Material | Copper wire, tinned surface | High purity copper ≥ 99.95% |
| Wire Diameter | 0.05 mm – 0.30 mm | Depending on application |
| Braid Structure | Flat or tubular | Custom weaving available |
| Width Range | 5 mm – 100 mm | Adjustable according to design |
| Thickness | 0.5 mm – 5 mm | Depends on braid density |
| Electrical Conductivity | ≥ 56 IACS | Excellent for power applications |
| Operating Temperature | -55 °C to +200 °C | Stable under extreme conditions |
| Surface Treatment | Tinned coating | Provides anti-oxidation protection |
| Applications | Grounding, shielding, bonding, power | Wide industrial coverage |
Customized specifications and bulk orders are available on request.
The role of Tinned Copper Braid extends far beyond simple wire protection. Its importance can be understood from several perspectives:
Electrical Safety: Provides reliable grounding, reducing the risk of equipment failure and electrical hazards.
Signal Protection: Shields sensitive circuits from electromagnetic and radio frequency interference, ensuring signal integrity.
Durability: Withstands harsh conditions including high temperatures, moisture, and vibration.
Cost-Effectiveness: Prolongs the lifespan of installations, lowering long-term maintenance costs.
Versatility: Can be applied in industries such as aerospace, marine, automotive, railway, renewable energy, and telecommunications.
Power Distribution: Ensures stable current transfer in switchgear and substations.
Automotive Industry: Used for battery grounding and wiring harness shielding.
Marine & Offshore: Withstands saltwater corrosion, making it ideal for ships and offshore platforms.
Telecommunication: Provides shielding in high-frequency signal cables.
Renewable Energy: Supports grounding and flexible connections in solar and wind power systems.
Railways & Aerospace: Reduces interference and enhances reliability in critical systems.
Q1: What makes Tinned Copper Braid better than bare copper braid?
A1: The tin coating on Tinned Copper Braid prevents oxidation and corrosion, which extends the lifespan of the braid. Bare copper is more prone to environmental damage, making tinned versions more reliable in harsh or outdoor applications.
Q2: Can Tinned Copper Braid be customized for specific projects?
A2: Yes. At Xiamen Jinguo Jinbei Cable Sales Co., Ltd., we offer customized dimensions, braid density, and packaging to match your exact technical requirements. Whether you need flat, tubular, or heavy-duty braid, we can manufacture accordingly.
Q3: Is Tinned Copper Braid suitable for high-temperature environments?
A3: Absolutely. Tinned Copper Braid performs reliably between -55 °C and +200 °C. This makes it ideal for both low-temperature cryogenic uses and high-heat industrial settings.
Q4: How does Tinned Copper Braid help with EMI shielding?
A4: The woven structure creates a conductive barrier that blocks electromagnetic and radio frequency interference. This ensures stable signal transmission, especially in sensitive communication and control systems.
The versatility, reliability, and long-lasting performance of Tinned Copper Braid make it indispensable across industries. From protecting circuits against EMI to ensuring safe grounding in demanding environments, it is a proven solution trusted worldwide.
At Xiamen Jinguo Jinbei Cable Sales Co., Ltd., we are committed to delivering top-quality Tinned Copper Braid products tailored to your needs. For inquiries, product customization, or bulk orders, please contact our team today and discover how we can support your projects with reliable solutions.
